Curvaglide® - Curved Glass Sliding Doors - W3F

Curved Glass Doors  |  Tech Specs  |  Installation  |  Gallery  |  Projects  |  Articles

(Need a different model? Click here)

3. Please fill in dimensions below: Choose the door dimensions.

W3F - 3 Doors Two Sliding One Fixed
Length mm
Height mm
Width mm
Depth mm

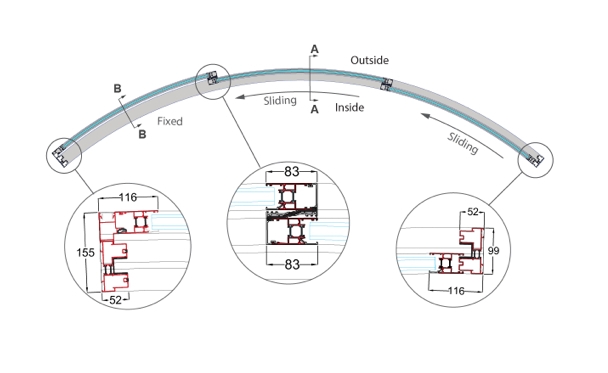

W3-F model of curved sliding door comprises a double thermally broken track with three curved doors; two doors that slide in front of a third door fixed to the external frame allowing approximately two thirds of the opening to be open at any one time. When ordering the customer can choose which door slides and which is fixed. Up to 28mm thick double glazing. Maximum length can be 5250mm and maximum height 2600mm.

Need a different model?

W2 - 2 Doors Sliding

Curved Glass Sliding Doors - W2



Select

W2F - 2 Doors One Sliding One Fixed

Curved Glass Sliding Doors - W2F



Select

W3F - 3 Doors Two Sliding One Fixed

Curved Glass Sliding Doors - W3F



Select

W3-2F - 3 Doors, One sliding, two fixed

Curved Glass Sliding Doors - W3-2F



Select

W4 - 4 Doors Sliding on two rails

Curved Glass Sliding Doors - W4



Select

W4F - 4 Doors Two Sliding Two Fixed

Curved Glass Sliding Doors - W4F



Select

W6F - 6 Doors Four Sliding Two Fixed

Curved Glass Sliding Doors - W6F



Select

W6-4F - 6 Doors, 2 Sliding and Four are fixed

Curved Glass Sliding Doors - W6-4F



Select

W8-4F - 8 Doors, 4 Sliding, 4 Fixed

Curved Glass Sliding Doors - W8-4F



Select

W8-6F - 8 Doors, 2 Sliding, 6 Fixed

Curved Glass Sliding Doors - W8-6F



Select
