TYPES OF GLASS JULIET BALCONIES

Juliet Balconies  |  Tech Specs  |  Installation  |  Gallery  |  Projects  |  Articles

GLASS JULIET BALCONIES: FOUR SYSTEM TYPES

Our glass Juliet balconies come in Four (4) system types. The characteristics of each system offer their own advantages and solutions best suited to particular on-site situations.

Each Juliet balcony system can be supplied in Fast-Track sizes (supplied in 5 working days) or can be custom made to a specific size.

The frameless juliet system's external profiles are available in our unique and very durable "Royal Chrome" anodised finish, the other 3 systems are available in the following finishes: our "Royal Chrome" anodised finish, Silver anodised, Bronze anodised or White powder coated.

The frameless juliet system has a singel glass panel spaniing the opning and uses 21.5mm laminated and toughened glass. The three other systems are available with 10 mm clear toughened glass, with or without the optional BalcoNano® self-cleaning glass coating. The custom Juliet balconies also have a choice of clear or three glass tints: Green, Grey or Bronze.

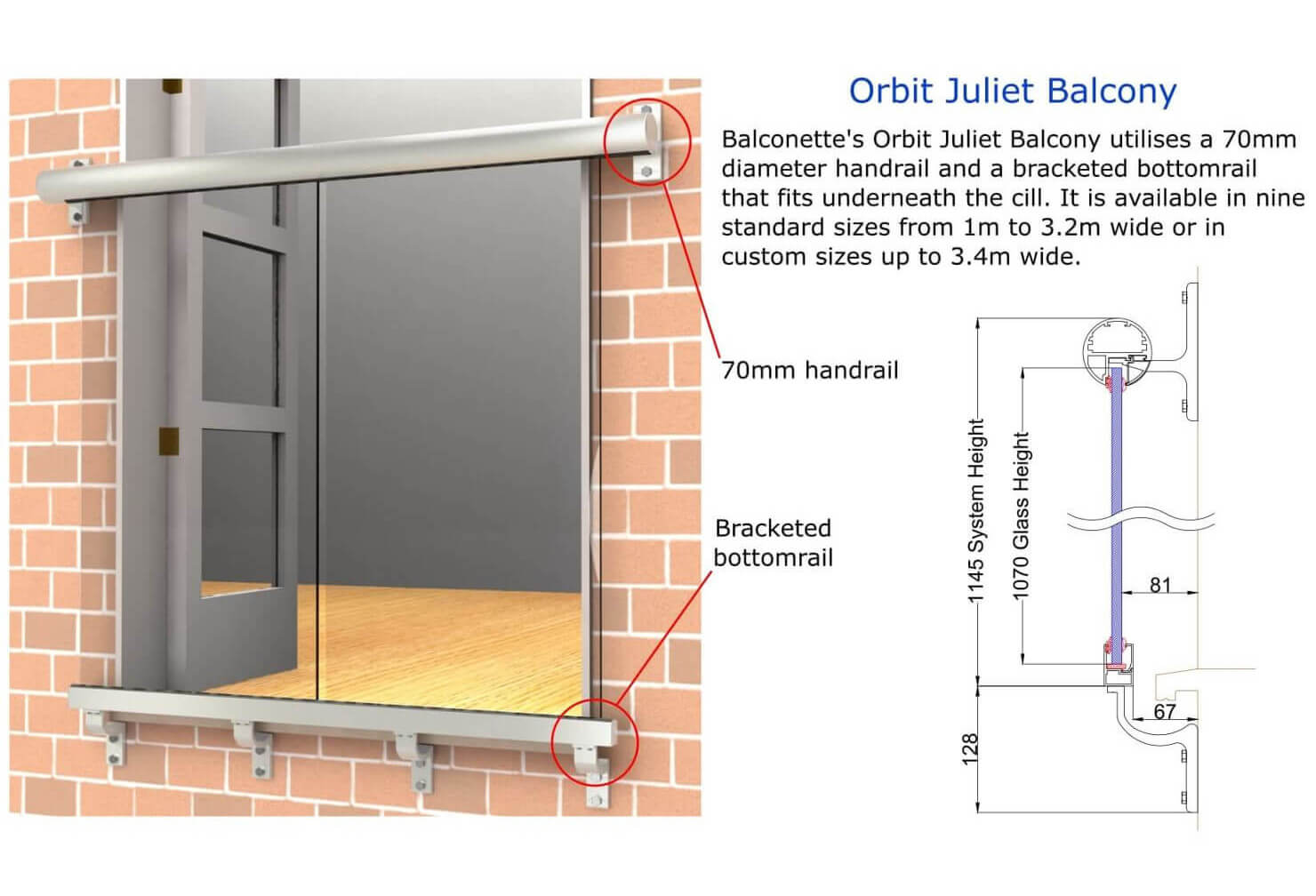

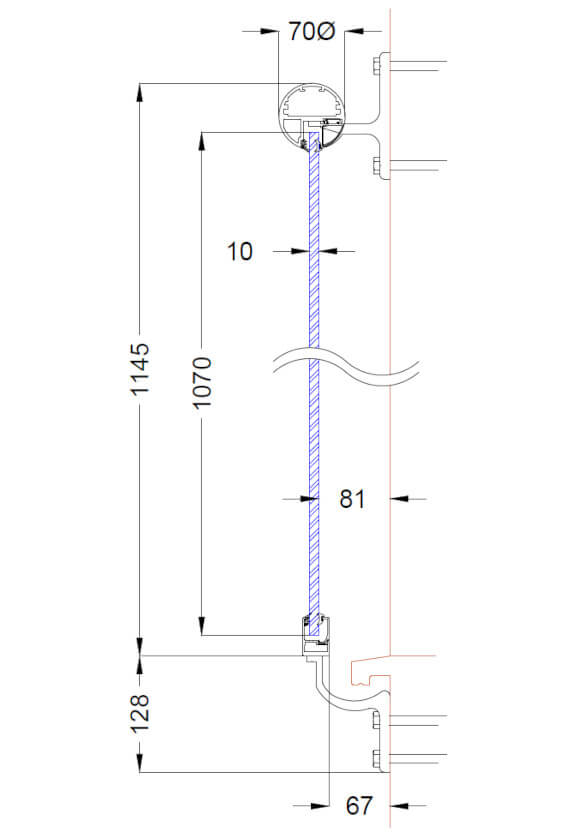

THE TRADITIONAL ORBIT JULIET

click here to expand

Glass Juliet Balcony The Traditional Juliet

Balconette’s Traditional Orbit Juliet Balcony system utilises a circular handrail (70mm diameter) and a bracketed bottom rail that fits underneath the sill. Click on the image for more information and on the sizes below to purchase your Orbit Juliet balcony.

The Traditional Orbit Juliet Balcony is available in NINE (9) Fast track widths (by which is meant the full handrail length) with a 5-working-day lead time:







The Orbit Juliet is also available in custom sizes up to 3400mm with a 21 working day lead time:

Download PDF

Standard Style System

View Installation PDF

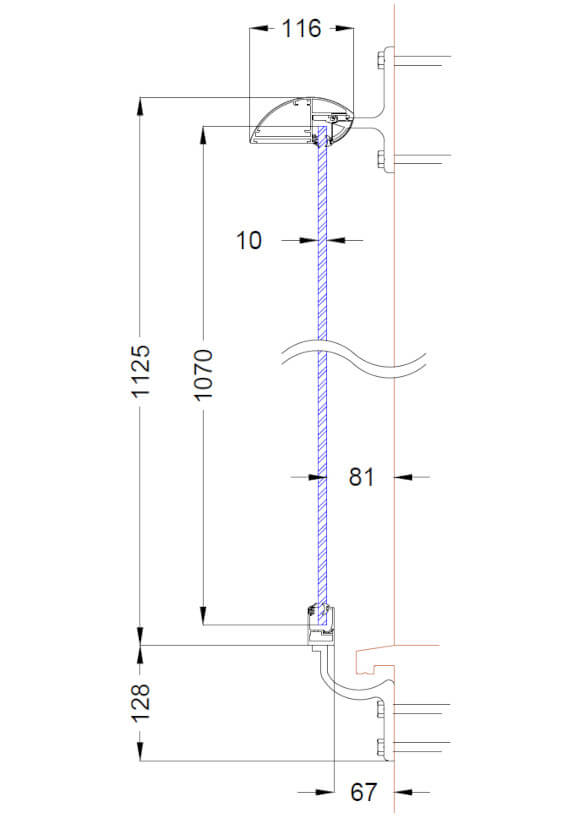

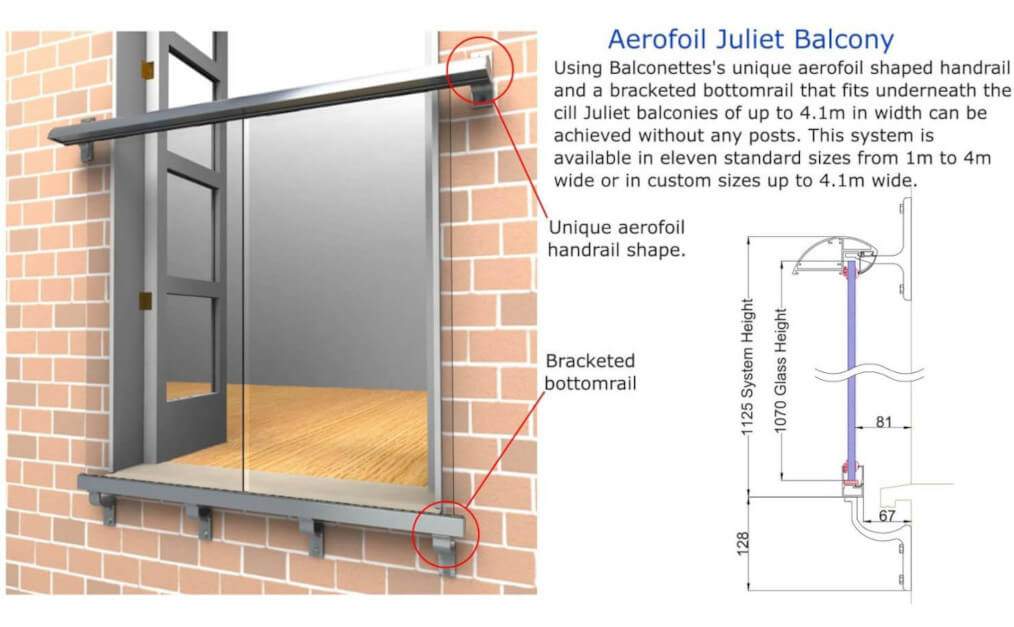

AEROFOIL JULIET



click here to expand

Glass Juliet Balcony Aerofoil bal 2 Juliet

The Aerofoil Juliet system has a unique aerofoil shaped handrail and bracketed bottom rail that fits underneath the sill. It spans up to 4.1m in width (handrail length) without posts. Click on the image for more information and on the sizes below to purchase your juliet balcony.

The Aerofoil Juliet balcony is available in Eleven (11) Fast track widths (full handrail length) with a 5-working-day lead time:




The Aerofoil Juliet available in custom sizes up to 4100mm with a 21 working day lead time:

Download PDF

Standard System Using Balcony 2 Handrail

View Installation PDF

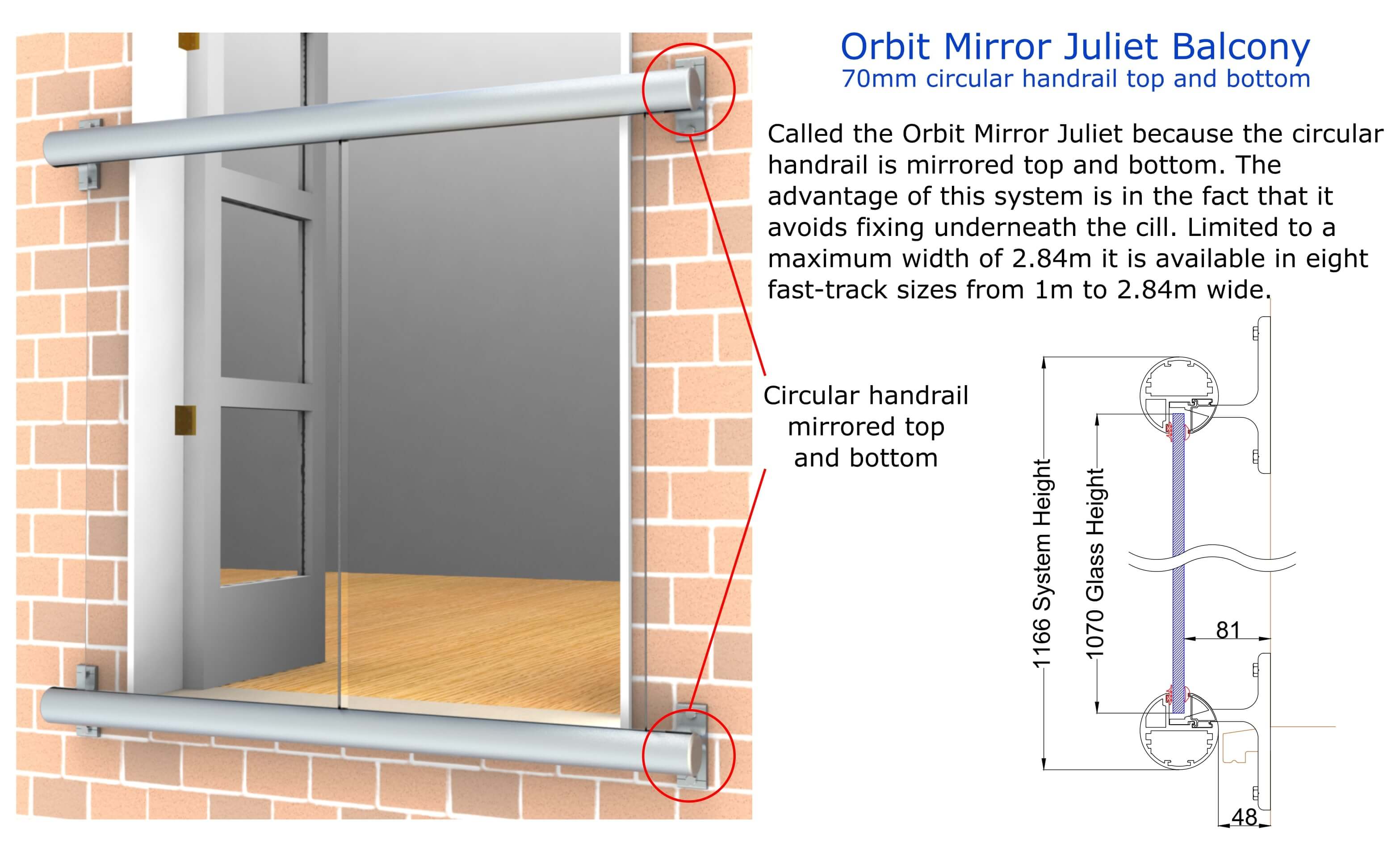

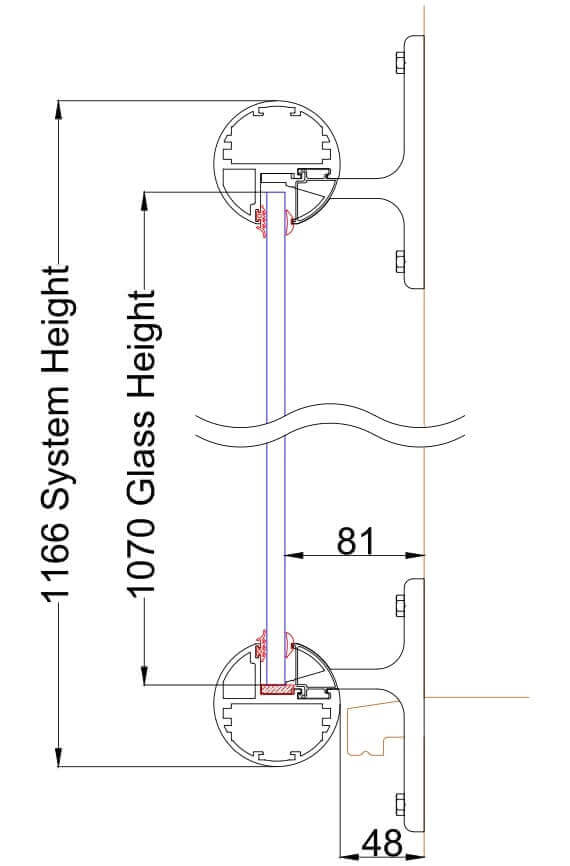

ORBIT MIRROR JULIET

click here to expand

Glass Juliet Balcony The Mirror Juliet

This system is called the Mirror Juliet because the circular handrail is mirrored top and bottom. The advantage of this system is the fact that it avoids the need for fixing underneath the sill whilst still looking stylish.

With a maximum width (handrail length) of 2.84m, it is available in Eight (8) Fast-Track sizes with a 5-working-day lead time:











Download PDF

Mirror Style System

View Installation PDF

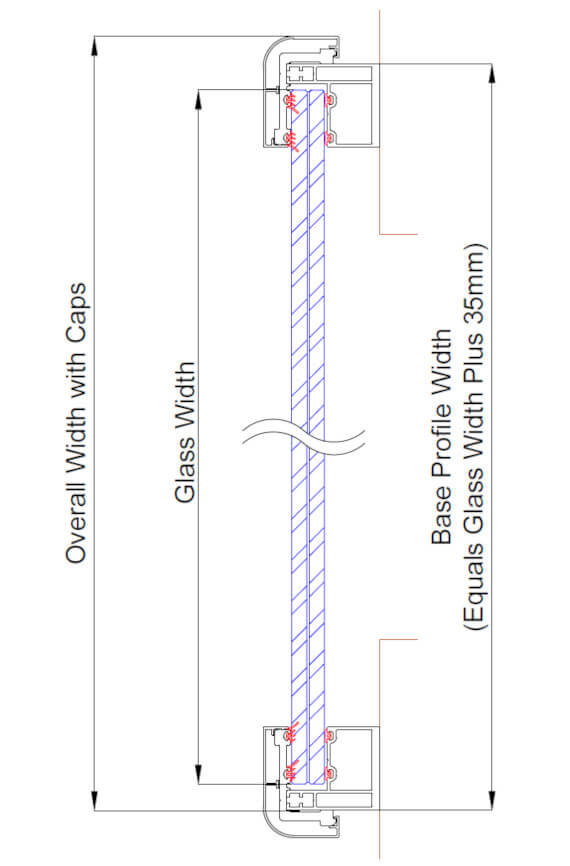

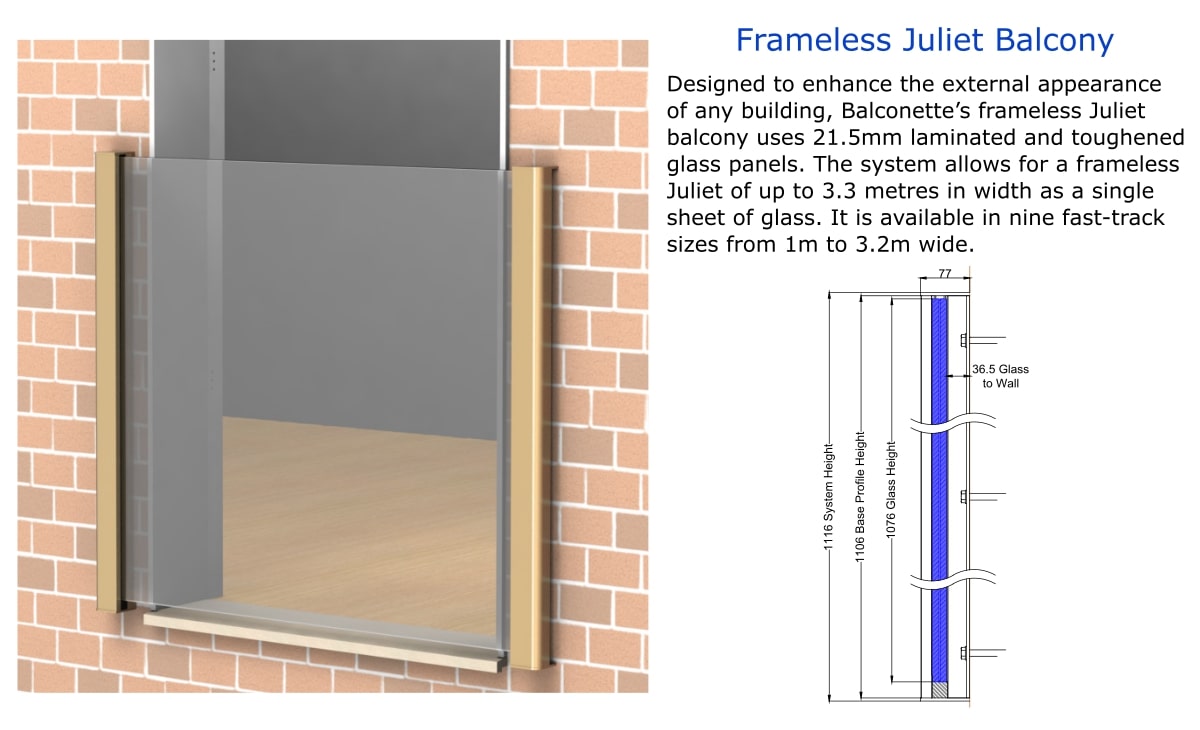

THE FRAMELESS JULIET

click here to expand

frameless Glass Juliet Balcony

The Frameless Glass Juliet Balconies are a highly aesthetic solution for Juliets, where  a single panle of glass will span the opening with no handrails or bottom rails.


The Frameless Juliet is available in Nine (9) Fast-Track widths with a 5-working-day lead time and is a frequent request amongst architects, designers and customers:




Or it can be custom made up to the limit of 3.3m length

Download PDF

Frameless Style System

View Installation PDF
